Anticorrosive pigment selection has shifted decisively over the past two decades, driven by tightening restrictions on chromate and lead-based inhibitors and by the parallel growth of waterborne industrial coatings. Among the materials that have filled this gap, aluminium dihydrogen triphosphate has become one of the most technically interesting options for formulators working on metal protection. Its appeal rests on a combination of ion-exchange behaviour, phosphate-based passivation chemistry, and compatibility with binder systems that conventional zinc phosphate struggles to serve. Understanding how the pigment behaves at the interface, and where its practical limits lie, separates a working formulation from a failed one.
This article examines the material from the perspective of a coatings chemist and a procurement engineer, covering structure, mechanism, application mapping, and the specification details that determine batch-to-batch reproducibility.
Chemical Identity and Structural Characteristics
The compound belongs to the family of condensed aluminium phosphates, and its commercial designation is often shortened to aluminium tripolyphosphate or AlH2P3O10. The anhydrous formula corresponds to a chain-structured tripolyphosphate anion in which three phosphorus tetrahedra share bridging oxygen atoms, with aluminium cations providing charge balance and forming a layered framework. Hydrated forms are common in pigment grades, and the degree of hydration influences both the ion-exchange rate and the dispersion behaviour in liquid systems.
What distinguishes this material from simple orthophosphates is the polymeric anion backbone. The tripolyphosphate chain retains a degree of structural flexibility, allowing the pigment particle to act as a reservoir that releases phosphate species progressively rather than dissolving rapidly. That controlled release is the foundation of its long-term protective performance.
Typical Technical Specifications
Appearance: free-flowing white powder, slightly hygroscopic under prolonged humid storage
Phosphorus pentoxide content: generally specified in the 42–46% range on a dry basis
Aluminium oxide content: typically 10–13% on a dry basis
Moisture: controlled below 2.0% for most coating grades
Oil absorption: approximately 20–35 g per 100 g, depending on particle size distribution
Median particle size (D50): commonly between 3 and 6 microns for primer applications
Aqueous suspension pH: mildly acidic to near-neutral, varying with grade and hydration state
Whiteness: generally above 90 for grades intended for light-coloured primers
These parameters are not interchangeable marketing figures. A shift of two percentage points in phosphorus content or a doubling of the coarse fraction can change salt-spray resistance measurably, which is why reputable suppliers publish full certificates of analysis rather than single-line data sheets.
How the Pigment Protects Metal Substrates
Protection from this class of pigment operates through several overlapping pathways rather than a single dominant reaction. The first is anodic passivation. When moisture penetrates the coating film and reaches the pigment particle, the tripolyphosphate chain undergoes hydrolysis and ion exchange, liberating phosphate anions into the surrounding electrolyte. These anions migrate to exposed steel and react with ferrous ions to form a dense, poorly soluble iron phosphate layer that restricts further metal dissolution.
The second pathway involves aluminium ion release. Aluminium cations generated at the particle surface participate in the formation of mixed metal-phosphate films, which tend to be more coherent than pure iron phosphate layers and provide better barrier behaviour in cyclic wet-dry exposure.
The third mechanism is cathodic inhibition through local pH buffering. Corrosion cells generate hydroxide at cathodic sites, raising the interfacial pH. The phosphate species released by the pigment buffer this shift, suppressing the oxygen reduction reaction that drives coating delamination at scribe marks. This buffering action explains why the material performs well in scribed panel testing, where conventional barrier pigments often fail.
Interaction with Other Pigments and Additives
Formulation synergy matters considerably here. Combining this pigment with zinc salts, whether zinc phosphate, zinc oxide, or a modified zinc orthophosphate, produces a more robust protective film than either component alone. The zinc species contribute additional cation availability for film formation, while the aluminium tripolyphosphate framework moderates release kinetics. Similar cooperative effects appear when the pigment is paired with calcium-modified silica extenders, which can act as supplementary ion-exchange sites.
Applications Across Coating Systems
The material is rarely positioned as a universal replacement for every anticorrosive pigment. Its strengths emerge in specific systems, and mapping those correctly avoids both underperformance and unnecessary cost.
Waterborne Primers and DTM Coatings
Waterborne alkyd, acrylic, and epoxy primers represent the largest volume application. Because the pigment disperses readily in aqueous media and does not introduce significant soluble salt load, it supports formulations with low volatile organic content while maintaining corrosion resistance comparable to solventborne references. Direct-to-metal coatings benefit from the buffering mechanism, which reduces flash-rust formation during the drying stage.
Heavy-Duty and Industrial Maintenance Coatings

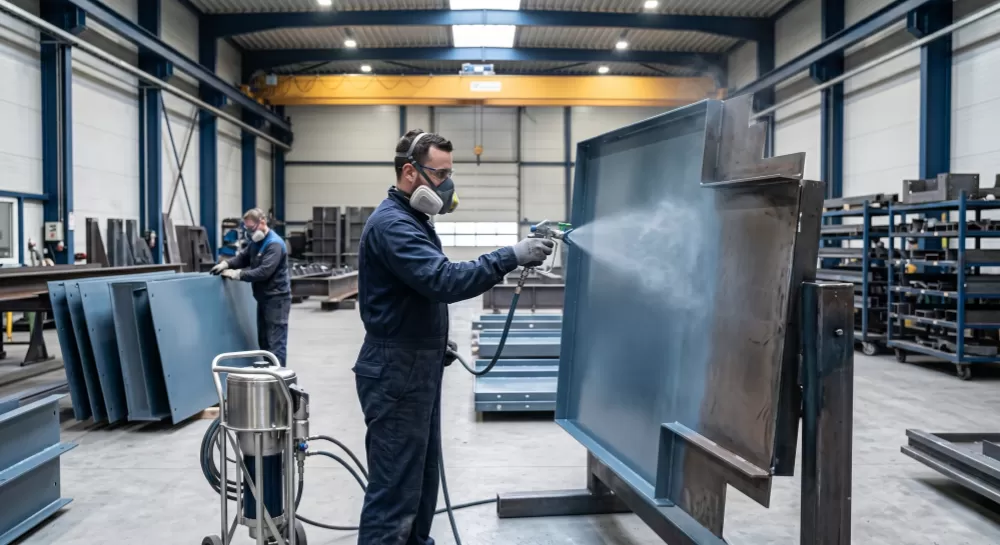

Epoxy and epoxy-polyurethane primer systems for structural steel, pipelines, and marine environments use this pigment at higher loading levels, often in combination with lamellar extenders. The layered structure of the phosphate particle contributes a degree of tortuosity to the diffusion path, complementing the chemical inhibition with a modest physical barrier effect.
Coil and Automotive Coatings
In coil coating lines, cure speed and film flexibility constrain pigment choice. Fine-particle grades of aluminium dihydrogen triphosphate integrate well into fast-curing polyester and polyurethane systems, where they support thin-film corrosion protection without compromising bendability. Automotive applications typically use it in e-coat and primer-surfacer layers, where its freedom from heavy metals aligns with OEM material restrictions.
Adhesives, Sealants, and Polymer Systems
Beyond coatings, the pigment finds use in sealants and adhesive formulations applied to metal substrates, where it provides corrosion inhibition at the bond line. Polymer masterbatches also incorporate it to protect embedded metal components from galvanic attack.
Formulation Guidance and Practical Considerations
Translating pigment properties into a working formula requires attention to several variables that are frequently underestimated.
Loading level: typical use ranges from 5 to 15% by weight of total formulation, with the optimum determined by pigment volume concentration and the required salt-spray duration
PVC positioning: performance generally peaks below the critical pigment volume concentration, where the binder fully encapsulates particles and release remains controlled
Dispersion: high-shear dispersion is preferred over ball milling to preserve the particle structure and avoid premature hydrolysis
pH adjustment: in aqueous systems, buffering the mill base before pigment addition reduces the risk of viscosity drift
Co-pigmentation: pairing with zinc or calcium ion sources extends protection duration in aggressive environments
Extender selection: lamellar talc, mica, and micaceous iron oxide complement the chemical mechanism
Storage stability deserves particular attention. Pigmented mill bases containing this material can thicken over time if the pH drifts or if soluble aluminium species accumulate. Controlling the dispersant chemistry and avoiding excessive water hardness in the let-down stage keeps viscosity within specification over a twelve-month shelf life.
Manufacturing Control and Quality Assurance
Production of pigment-grade aluminium dihydrogen triphosphate involves reacting an aluminium source with phosphoric acid under controlled stoichiometry, followed by thermal treatment to achieve the desired degree of condensation. Reaction temperature, residence time, and drying profile determine the ratio of ortho-, pyro-, and tripolyphosphate species present in the final product, and that distribution directly affects release kinetics.
Xinsheng operates its production lines with in-process monitoring of reaction conversion and final particle size distribution, which allows tighter control over the coarse fraction that often causes settling in stored paints. Each batch is characterised for phosphorus and aluminium content, moisture, oil absorption, pH, and whiteness before release. Third-party verification through recognized testing bodies supports customer-side regulatory documentation for markets with strict material declaration requirements.
Selection Criteria for Technical Buyers
Procurement decisions in this category should extend beyond price per kilogram, since a marginally cheaper grade with wider particle distribution can increase pigment loading requirements and erode the apparent saving.
Consistency of phosphorus and aluminium content across consecutive lots
Particle size distribution curves rather than single D50 values
Moisture specification and packaging integrity for humid climates
Heavy metal content documentation, including lead, cadmium, and chromium
Compatibility testing in the customer's specific binder system before full-scale qualification
Supplier capacity and lead time reliability for continuous production schedules
Working with a manufacturer that provides application-level technical support shortens the qualification cycle considerably. Xinsheng supplies formulation guidance alongside material data, helping customers optimise loading levels for their particular resin and curing chemistry.
Frequently Asked Questions
Q: How does aluminium dihydrogen triphosphate differ from zinc phosphate?
A: Both rely on phosphate-based passivation, but the aluminium tripolyphosphate structure offers a slower, more controlled release profile and does not introduce zinc ions into the film. This makes it suitable for systems where zinc sensitivity or heavy-metal restrictions apply, and it often performs better in scribed and cyclic corrosion tests.
Q: What is the recommended addition level in a primer?
A: Most formulations use between 5% and 15% by weight of the total paint. The correct figure depends on binder type, pigment volume concentration, film thickness, and the required duration of salt-spray resistance. Start at 8% and optimise through ladder testing.
Q: Can it be used in waterborne systems without stability problems?
A: Yes, provided the mill base pH is buffered and the dispersant system is compatible with phosphate anions. Viscosity drift and settling are the two issues most commonly reported, and both are manageable with proper dispersant selection and particle size control.
Q: Does it work in combination with other inhibitors?
A: It performs well alongside zinc salts, calcium ion exchangers, and modified orthophosphates. Combinations frequently deliver longer protection than single-pigment systems because the release profiles and inhibition mechanisms complement each other.
Q: Is the pigment suitable for topcoats?
A: It is primarily a primer and pretreatment-layer pigment. Topcoat use is uncommon because the protective mechanism depends on proximity to the metal interface and on moisture reaching the particle, which a fully sealed topcoat restricts.
Q: What packaging and shelf life should buyers expect?
A: Standard packaging is 25 kg multi-wall paper bags with an inner polyethylene liner, or 500 kg and 1000 kg bulk bags. Stored in a dry, ventilated area away from direct moisture, the material retains its specified properties for approximately twenty-four months.
Q: How does particle size affect performance?
A: Finer grades disperse more evenly and produce smoother films, but excessively fine material can accelerate release and shorten protection duration. Coarse fractions improve barrier behaviour but tend to settle. A controlled distribution with a D50 around 4 microns balances both effects.
For technical data sheets, samples, or a discussion of grade selection for your specific binder system, contact the Xinsheng technical sales team with details of your application, substrate, and performance target. Our formulators will recommend a grade and loading level matched to your requirements and provide supporting test data for your qualification process.
